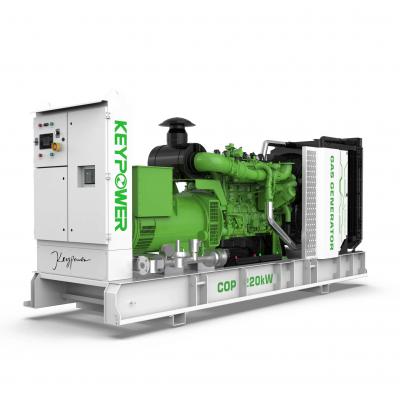

KPG-C500P 50HZ Cummins Engine K19N-G4 Gas Generator

Engine Brand: CAMC Engine Model: HMT13F.408 30 Voltage: 400V Rated Current: 451.1A Frequency: 50Hz Prime Power Rating: 250kW Continuous Power Rating: 220kW Fuel Type: Standard Natural Gas (CH4 ≥95%) Fuel Pressure Range (Engine feed): 1-5 kPa Fuel Pressure Range (Gas train feed): <1 bar Gas Consumption (Prime Power): >80 m³/h Genset Model: KPG-H313P Genset Dimensions: 4200×1330×1980 mm Genset Weight: 3100 kg​

Dimensions   Expand Working Dimension 2804*2564*7500mm Package Dimensions 1850*1250*1780mm Weight 540KG Max. # of units loading 24 units / 40HQ Engine   Engine model KP188FE  engine Engine power 6.9kW Cooling system air cool Fuel Type DIESEL  Bore*Stroke(mm) 88*90 Displacement  2L Speed 3600RPM Alternator   Power  6KW  Voltage and frequency 110 & 270V/50 & 60hz Phase single Output 220V AC Excitation model  Brush self excitation Mast & Lights   Max.Height 7M telescoping rotating tower Sections 5 SECTIONS Feature Rotation of the tower 360 ° Lifting system MANUAL Fooldlight LED Lamp 4x400w Total lumens 4x48000lum Control Panel   Brand SMART GEN 5 Start style Electric start Digital Hour meter YES Operation monitoring YES Fuel System   Material polyethylene Capacity 120L Consumption  260g/kwh Continuous working time 70 hours Protect   Windproof class ＜88KM/H Max towing Speed 45KM/H Warning light yes ​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-C180P   Prime Power (kW/kVA): 145/180   Standby Power (kW/kVA): 160/200   Fuel cons 100%(L/H): 42     ENGINE：   Powered by:  Cummins   Engine Model: 6CTA8.3-G2     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 60Hz   Model: KPX-W112P   Prime Power (kW/kVA): 90/112.5   Standby Power (kW/kVA): 100/125   Fuel cons 100%(L/H): 26.2     ENGINE：   Powered by:  Weichai   Engine Model: WP4.1D115E201     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-W30P   Prime Power (kW/kVA): 24/30   Standby Power (kW/kVA): 26.4/33   Fuel cons 100%(L/H): 7.7     ENGINE：   Powered by: Weichai   Engine Model: WP2.3D33E200     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 60Hz   Model: KPX-Y49P   Prime Power (kW/kVA): 40/50   Standby Power (kW/kVA): 44/55   Fuel cons 100%(L/H): 13.8     ENGINE：   Powered by:  Yanmar   Engine Model: 4TNV98CT-GGE     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-YC2250P   Prime Power (kW/kVA): 1800/2250   Standby Power (kW/kVA): 2000/2500   Fuel cons 100%(L/H): 505.9     ENGINE：   Powered by:  YUCHAI   Engine Model: YC12VC3000-D30   ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 60Hz   Model: KPX-Y49P   Prime Power (kW/kVA): 39.2/49   Standby Power (kW/kVA): 43.2/54   Fuel cons 100%(L/H): 15.53     ENGINE：   Powered by:  Yanmar   Engine Model: 4TNV98T-ZGGE     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​
