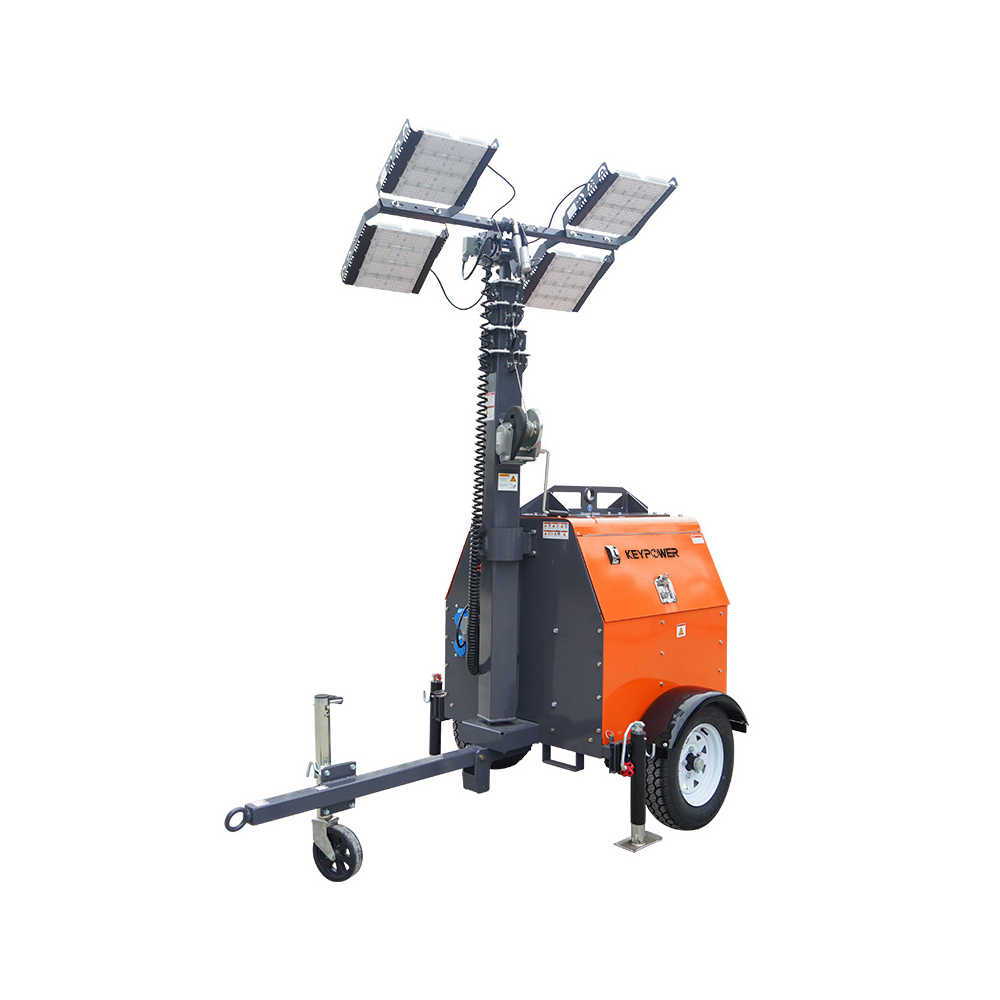

KPLT-L1600C LED light tower

Dimensions   Expand Working Dimension 3350*2550*7500mm Package Dimensions 2250*1200*1980mm Weight 840KG Max. # of units loading 22 units / 40HQ Engine   Engine model KUBOTA D1105 Cooling system water cool Fuel Type DIESEL  Bore*Stroke(mm) 3-78*78.5 Displacement  1.21L Speed 1500RPM Alternator   Power  8KW  Voltage and frequency 110 & 270V/50 & 60hz Phase single Output 230V Excitation model  Brushless Mast & Lights   Max.Height 7.5M telescoping rotating tower Sections 5 SECTIONS Feature 360 rotation  Lifting system Electric Fooldlight LED Lamp 4x400w Total lumens 4x52000lum Control Panel   Brand SMART GEN 5 Start style Electric start Battery  12V Digital Hour meter YES Operation monitoring YES Fuel System   Material Iron Capacity 120L Runing time 90H Trailer   Windproof class ＜102km/h Trailler Suspension & Axle With Brakes Leaf Springs&single axle without brake Tow Bar Retractable &Adjustable Supporting Wheel towbar Stabilizing Legs & Number 4 pcs drawable bar with manual jacks Wheel's rim size & Tires 14INCH & 185 Tow a Adapter 50mm ball adapter Tail Lights Tail Reflector Max Towing Speed 60km/h Extinguisher yes ​

Dimensions   Expand Working Dimension 2220*1710*7500 mm Package Dimensions 1396*1090*2050 mm weight About 280KG Max. # of units loading 34 pcs / 40HC AC Distribution   Circuit Breaker Size 32A Voltage and frequency 110 & 270V/50 & 60hz Mast & Lights   Max Height 7.5m Lifting Winch manual manual crank single Sections 5 Rotation  360degree The automatic brake of the hoist winch YES Construction galvanized Wind Rating 80km/h Bulb Type LED Lights-Power 4x150W Total lumens 4x19500Lm Lighting area 4800sqm Protection Level lP65 Cable KG XL 2x2.5- 300 meters Coverage Per Power 3000sqm Current of a single LED lamp Single phase 0.64A depending on the power of the lamp it fluctuates Electric outlet Single phase 2.56(0.64*4)A Trailer   Supporting wheel 1 qty Tires-Size 3.5x8 (0.89x2.03)in(cm) Transport wheel 2 qty Tires-Size 3.5x16 (0.89x4.06)in(cm) Handles 2 qty Max Towing Speed 45km/h Windproof class 72km/h Forklift holes 4 qty Lifting holes 4 qty ​

Dimensions   Expand Working Dimension 2900*3300*9000mm Package Dimensions 1920*1160*2420mm Full extending height 9m Gross weight 1200kg Max. # of units loading 10 units / 40HQ Engine   Engine model KUBOTA（D1105） Speed(rpm) 1500 Number of cylinders 3 Engine characters 4 cycles,Watercooled diesel Combustion System E-TVS Engine aspiration Naturally aspirated Alternator   Standard configuration SPARKS Frequency(Hz) 50/60 Rating voltage (V) 220 Alternator insulation Class H Alternator protection grade IP67 Mast & Lights   Type of Lights LED Light's fixture Oval Luminous flux 52000LM*4 Number & power of lights 400W*4 Number of mast sections 8 Mast extension Hydraulic Mast rotation Manually,Max.359° lockable Light tilt Electric Trailer   Trailer suspension & axle with brakes Leaf springs & single axle without brake Tow bar Retractable & adjustable supporting wheel tow bar Stabilizing legs & number 4 pcs extendable bar with manually retractable jacks Wheel's rim size & tires 14" rim with regular tires Tow adapter 2" or 50 mm ball adapter Tail light Tail reflector Max towing speed 80km/h Additional Features   Fuel tank Type Rotational moulding plastic Fuel tank capacity 110 liters (28 US gallons) Operating hours with full fuel 65 hours Wires & electric components Regular Generator starting type or controler Key starting Max. against wind when fully extended 20 m/s Acoustic pressure 72dB(A) at 7 meters away Standard colour orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs ​

Dimensions   Length 3200mm Width 1630mm Height 2750mm Full extending height 9 Mast & Lights   Type of Lights LED Light's fixture Oval Luminous flux 21000*4 LM/light Number & power of lights 4x150W Number of mast sections 6 Mast extension Manually Battery pack   Working Voltage DC24V Battery Type Colloidal battery Battery capacity 4x200AH Charging time About 10hrs (0% -100%) Battery lifespan 1000 cycles Solar panel   Solar panel power 3*470W Types of solar panels Monocrystalline silicon solar panels Rating voltage (V) 220 Alternator insulation Solar panel deployment method Control System   Control Type Manual switch Control method Manual Control All lights are on, no separate control is required Add 24V output line to monitoring platform Trailer   Trailer suspension & axle with brakes Leaf springs & single axle without brake Tow bar Retractable & adjustable supporting wheel tow bar Stabilizing legs & number 4 pcs extendable bar with manually retractable jacks Wheel's rim size & tires 14" rim with regular tires Tow adapter 2" or 50 mm ball adapter Tail light Tail reflector Max towing speed 60km/h Charging method   Working hours 12-16H Additional Features   Packaging size 220*163*233cm Weight 1180KG Wires & electric components Regular Max. # of units loading in 40’ high container (Some components would be detached) 7 Max. against wind when fully extended 20m/s Standard colour orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs ​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-H225P   Prime Power (kW/kVA): 180/225   Standby Power (kW/kVA): 200/250   Fuel cons 100%(L/H): 48.7     ENGINE：   Powered by: Hyundai   Engine Model: DP086LA     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-YC1650P   Prime Power (kW/kVA): 1320/1650   Standby Power (kW/kVA): 1440/1800   Fuel cons 100%(L/H): 374.4     ENGINE：   Powered by:  YUCHAI   Engine Model: YC16VTD2270-D30   ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 60Hz   Model: KPX-P53P   Prime Power (kW/kVA): 42/53   Standby Power (kW/kVA): 46/58   Fuel cons 100%(L/H): 12.9     ENGINE：   Powered by:  Perkins   Engine Model: 1103A-33TG1     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-S700P   Prime Power (kW/kVA): 560/700   Standby Power (kW/kVA): 600/750   Fuel cons 100%(L/H): 143.1     ENGINE：   Powered by:  SDEC   Engine Model: 6KTAA25-G38     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​
