KPBS-5015L Liquid-cooled Battery Storage Container

General Max. Round Trip Efficiency 89% Cycle Life ≥8,000 cycles Communication Modbus TCP/IP Fire Suppression System Aerosol Ingress Rating IP55 Cooling Liquid cooling + Forced air cooling Operating Temperature -25℃~55℃ (Derating after 45℃) Atmosphere Rating C4 (C5 optional) Humidity 0~95% RH (non-condensing) Noise ≤75 dB Altitude 3000m (Derating above 2000m) Dimensions (W×D×H) 1,050 x 1,350 x 2,400 mm Weight 2,600 kg Safety / EMC UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A Grid Code EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11, CEI0-21, CEI0-16 AC Side   Rated Output Power 125 kW Rated AC Voltage 400 V AC Voltage Range ±15% Grid Type 3W+N+PE Rated Frequency 50 Hz / 60 Hz Power Factor 0.99 / -1 ~ +1 THDi ≤3% DC Ratio <0.5% Ipn DC Side   Cell Type LFP / 314 Ah Pack Configuration 52.2 kWh / 1P52S System Configuration 261 kWh / 1P260S Rated DC Voltage 832 V DC Voltage Range 728 ~ 936 V Max. Charge/Discharge Rate 0.5P Max. Depth of Discharge 100% (25 ± 2 ℃) ​

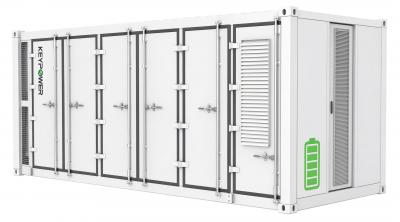

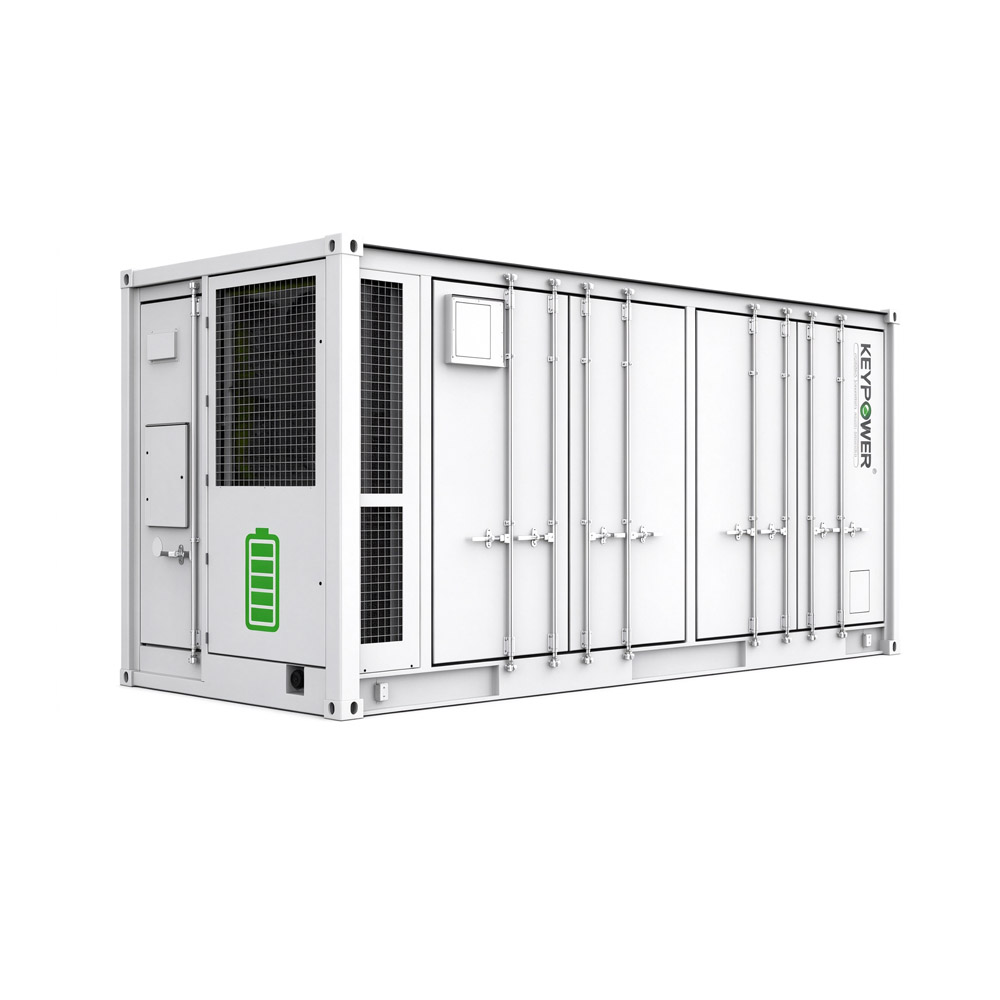

General Max. Round Trip Efficiency 89% Cycle Life ≥8,000 cycles Communication Modbus TCP/IP Fire Suppression System Aerosol system + Water spray system Ingress Rating IP55 Cooling Liquid cooling + Forced air cooling Operating Temperature -25℃~55℃ (Derating after 45℃) Atmosphere Rating C4 (C5 optional) Humidity 0~95% RH (non-condensing) Noise ≤80 dB Altitude 3000m (Derating above 2000m) Dimensions (W×D×H) 6,058 x 2,438 x 2,591 mm Weight 28t Safety / EMC UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A, IEC62933-5-2 Grid Code EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11, CEI0-21, CEI0-16 AC Side   Rated Output Power 1000 kW Rated AC Voltage 400 V AC Voltage Range ±15% Grid Type 3W+N+PE Rated Frequency 50 Hz / 60 Hz Power Factor 0.99 / -1 ~ +1 THDi ≤3% DC Ratio <0.5% Ipn DC Side   Cell Type LFP / 314 Ah Pack Configuration 48.2 kWh / 1P48S System Configuration 2170 kWh / 9P240S Rated DC Voltage 768 V DC Voltage Range 672 ~ 864 V Max. Charge/Discharge Rate 0.5P Max. Depth of Discharge 100% (25 ± 2 ℃) ​

General Efficiency ≥90% Charge/Discharge Rate 0.5P Max. DoD 95% (25±2℃) Cycle Life ≥8000 Cycles Ingress Rating IP55 Cooling Force Air Cooling Operating Temperature -25~55℃ Humidity 0~95%RH, non-condensing Altitude ≤2000m (derating above 2,000m) Dimensions (W×D×H) 8000 x 1200 x 2100 mm Weight 1.2t Safety / EMC Aerosol Connective Ethernet/RS485 Compliance UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, En50549 Grid Code G99, VDE-AR-N 41 NTS 631 / RD 16 TOR, EIFS 2005 / VDEV 0124, EN 50549-1 / EN 50549-10, VDE 0126 / UTE C 15 / VFR:2019, 99 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1,18.2,IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA N° 140, DE 21 DE MARÇO DE 2022 AC Output   Rated Power 30 kW                         40 kW                         50 kW Max. Power 30 kVA                        40 kVA                        50 kVA Nominal Voltage 400Vac / 3P+N+PE Nominal Frequency 50Hz / 60Hz THDi <3% DC Ratio <0.5%pn Power Factor 0.8 leading ~ 0.8 lagging PV Input   Recommended input power Max. 60 kW                          80 kW                          100 kW            PV Voltage 150 ~ 850V                  150 ~ 850V                  150 ~ 850V   MPPT 3                                    4                                   4     MAX. Input Current 40A×3                          40A×4                          40A×4     Battery Input   Cell Type LFP / 314 Ah Battery System 1P120S Rated Energy 120.58 kWh Rated Voltage 384 V Voltage Range 336 ~ 432 V ​

GENERATOR SET SPECIFICATIONS   Frequency: 60Hz   Model: KPX-YC125P   Prime Power (kW/kVA): 100/125   Standby Power (kW/kVA): 110/137.5   Fuel cons 100%(L/H): 31.6     ENGINE：   Powered by:  YUCHAI   Engine Model: YC4D180-D33   ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-40P   Prime Power (kW/kVA): 32/40   Standby Power (kW/kVA): 35/44   Fuel cons 100%(L/H): 10.4     ENGINE：   Powered by:  Fawde   Engine Model: 4DX21-53D-HMS20W     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-D750P   Prime Power (kW/kVA): 600/750   Standby Power (kW/kVA): 660/825   Fuel cons 100%(L/H): 157.13     ENGINE：   Powered by:  Deutz   Engine Model: HC12V132ZL-LAG2A     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-M1125P   Prime Power (kW/kVA): 900/1125   Standby Power (kW/kVA): 990/1238   Fuel cons 100%(L/H): 241.9     ENGINE：   Powered by:  MTU   Engine Model: 18V 2000 G65     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 60Hz   Model: KPX-B720P   Prime Power (kW/kVA): 576/720   Standby Power (kW/kVA): 640/800   Fuel cons 100%(L/H): 168.2     ENGINE：   Powered by:  Baudouin   Engine Model: 6M33G633/6     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​
