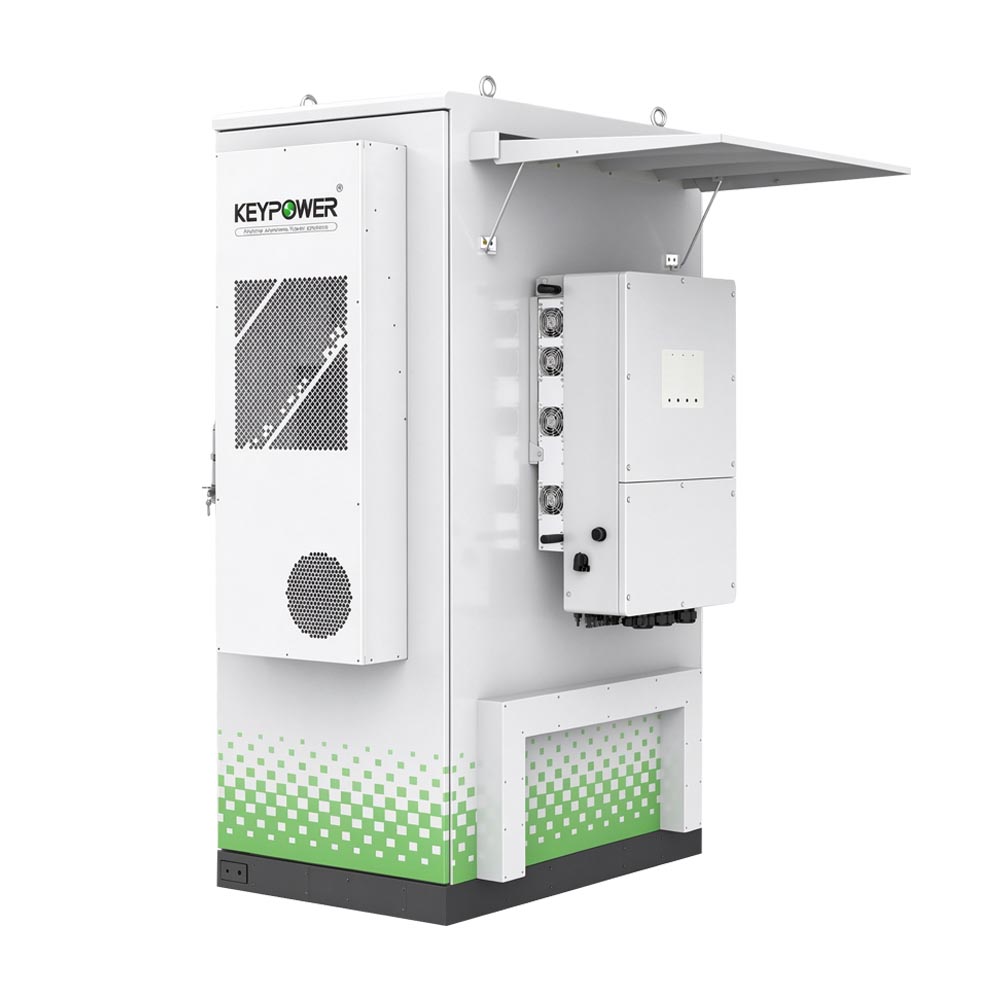

KPES-50/120A Air-cooled Hybrid Cabinet

General Max. Round Trip Efficiency 89% Cycle Life ≥8,000 cycles Communication Modbus TCP/IP Fire Suppression System Aerosol Ingress Rating IP55 Cooling Liquid cooling + Forced air cooling Operating Temperature -25℃~55℃ (Derating after 45℃) Atmosphere Rating C4 (C5 optional) Humidity 0~95% RH (non-condensing) Noise ≤75 dB Altitude 3000m (Derating above 2000m) Dimensions (W×D×H) 1,050 x 1,350 x 2,400 mm Weight 2,600 kg Safety / EMC UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A Grid Code EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11, CEI0-21, CEI0-16 AC Side   Rated Output Power 125 kW Rated AC Voltage 400 V AC Voltage Range ±15% Grid Type 3W+N+PE Rated Frequency 50 Hz / 60 Hz Power Factor 0.99 / -1 ~ +1 THDi ≤3% DC Ratio <0.5% Ipn DC Side   Cell Type LFP / 314 Ah Pack Configuration 52.2 kWh / 1P52S System Configuration 261 kWh / 1P260S Rated DC Voltage 832 V DC Voltage Range 728 ~ 936 V Max. Charge/Discharge Rate 0.5P Max. Depth of Discharge 100% (25 ± 2 ℃) ​

General Max. Round Trip Efficiency 89% Cycle Life ≥8,000 cycles Communication Modbus TCP/IP Fire Suppression System Aerosol system + Water spray system Ingress Rating IP55 Cooling Liquid cooling + Forced air cooling Operating Temperature -25℃~55℃ (Derating after 45℃) Atmosphere Rating C4 (C5 optional) Humidity 0~95% RH (non-condensing) Noise ≤80 dB Altitude 3000m (Derating above 2000m) Dimensions (W×D×H) 6,058 x 2,438 x 2,591 mm Weight 28t Safety / EMC UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A, IEC62933-5-2 Grid Code EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11, CEI0-21, CEI0-16 AC Side   Rated Output Power 1000 kW Rated AC Voltage 400 V AC Voltage Range ±15% Grid Type 3W+N+PE Rated Frequency 50 Hz / 60 Hz Power Factor 0.99 / -1 ~ +1 THDi ≤3% DC Ratio <0.5% Ipn DC Side   Cell Type LFP / 314 Ah Pack Configuration 48.2 kWh / 1P48S System Configuration 2170 kWh / 9P240S Rated DC Voltage 768 V DC Voltage Range 672 ~ 864 V Max. Charge/Discharge Rate 0.5P Max. Depth of Discharge 100% (25 ± 2 ℃) ​

Item Cell Type LFP 314 Ah Pack Configuration 104.5kWh / 1P104S System Configuration 5.015MWh / 12P416S Rated DC Voltage 1331.2 V DC Voltage Range 1165 ~ 1498 V Max. Charge/Discharge Rate 0.5P Max. Depth of Discharge 100% 25 ±2 ℃ Cycle Life ≥8,000 cycles Fire Suppression System Aerosol system + Water spray system Ingress Rating IP55 Cooling Liquid cooling + Forced air cooling Operating Temperature -25℃~55℃ (Derating after 45℃) Anticorrosion Rating C4 (C5 optional) Humidity 0~95% RH (non-condensing) Altitude 3000m Dimensions (W×D×H) 6,058×2,438×2,896 mm Weight 41.8t Safety/EMC UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 ​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-150P   Prime Power (kW/kVA): 120/150   Standby Power (kW/kVA): 132/165   Fuel cons 100%(L/H): 34.4     ENGINE：   Powered by:  Fawde   Engine Model: CA6DF2-19D     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-MB7P   Prime Power (kW/kVA): 5.4/6.8   Standby Power (kW/kVA): 6/7.5   Fuel cons 100%(L/H): 1.8     ENGINE：   Powered by:  Mitsubushi   Engine Model: L3E     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-SN250P   Prime Power (kW/kVA): 200/250   Standby Power (kW/kVA): 220/275   Fuel cons 100%(L/H): 52.6     ENGINE：   Powered by:  Scania   Engine Model: DC09 320A 02-61     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-C180P   Prime Power (kW/kVA): 145/180   Standby Power (kW/kVA): 160/200   Fuel cons 100%(L/H): 42     ENGINE：   Powered by:  Cummins   Engine Model: 6CTA8.3-G2     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-YC113P   Prime Power (kW/kVA): 90/112.5   Standby Power (kW/kVA): 100/125   Fuel cons 100%(L/H): 27.6     ENGINE：   Powered by:  YUCHAI   Engine Model: YC4D155-D31   ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​
