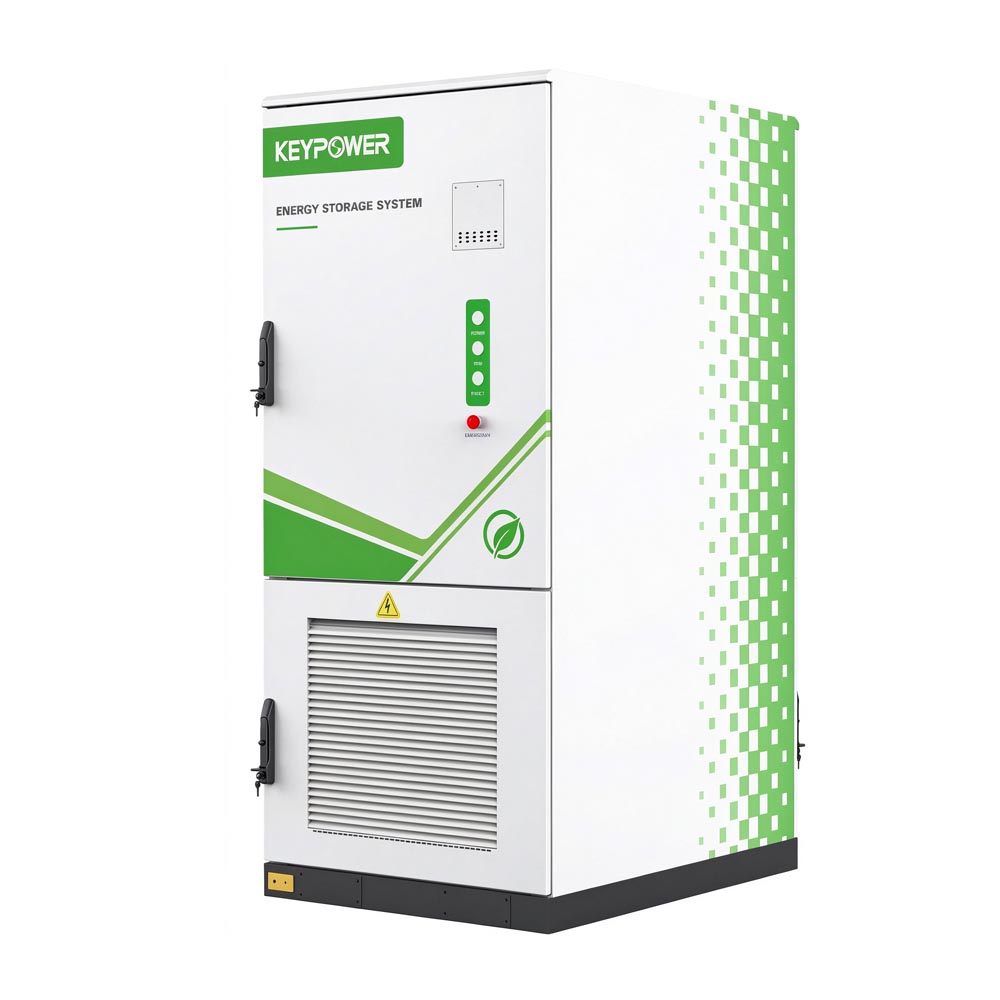

KPES-125/261L All-in-one ESS Cabinet

General Max. Round Trip Efficiency 89% Cycle Life ≥8,000 cycles Communication Modbus TCP/IP Fire Suppression System Aerosol system + Water spray system Ingress Rating IP55 Cooling Liquid cooling + Forced air cooling Operating Temperature -25℃~55℃ (Derating after 45℃) Atmosphere Rating C4 (C5 optional) Humidity 0~95% RH (non-condensing) Noise ≤80 dB Altitude 3000m (Derating above 2000m) Dimensions (W×D×H) 6,058 x 2,438 x 2,591 mm Weight 28t Safety / EMC UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A, IEC62933-5-2 Grid Code EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11, CEI0-21, CEI0-16 AC Side   Rated Output Power 1000 kW Rated AC Voltage 400 V AC Voltage Range ±15% Grid Type 3W+N+PE Rated Frequency 50 Hz / 60 Hz Power Factor 0.99 / -1 ~ +1 THDi ≤3% DC Ratio <0.5% Ipn DC Side   Cell Type LFP / 314 Ah Pack Configuration 48.2 kWh / 1P48S System Configuration 2170 kWh / 9P240S Rated DC Voltage 768 V DC Voltage Range 672 ~ 864 V Max. Charge/Discharge Rate 0.5P Max. Depth of Discharge 100% (25 ± 2 ℃) ​

General Efficiency ≥90% Charge/Discharge Rate 0.5P Max. DoD 95% (25±2℃) Cycle Life ≥8000 Cycles Ingress Rating IP55 Cooling Force Air Cooling Operating Temperature -25~55℃ Humidity 0~95%RH, non-condensing Altitude ≤2000m (derating above 2,000m) Dimensions (W×D×H) 8000 x 1200 x 2100 mm Weight 1.2t Safety / EMC Aerosol Connective Ethernet/RS485 Compliance UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, En50549 Grid Code G99, VDE-AR-N 41 NTS 631 / RD 16 TOR, EIFS 2005 / VDEV 0124, EN 50549-1 / EN 50549-10, VDE 0126 / UTE C 15 / VFR:2019, 99 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1,18.2,IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA N° 140, DE 21 DE MARÇO DE 2022 AC Output   Rated Power 30 kW                         40 kW                         50 kW Max. Power 30 kVA                        40 kVA                        50 kVA Nominal Voltage 400Vac / 3P+N+PE Nominal Frequency 50Hz / 60Hz THDi <3% DC Ratio <0.5%pn Power Factor 0.8 leading ~ 0.8 lagging PV Input   Recommended input power Max. 60 kW                          80 kW                          100 kW            PV Voltage 150 ~ 850V                  150 ~ 850V                  150 ~ 850V   MPPT 3                                    4                                   4     MAX. Input Current 40A×3                          40A×4                          40A×4     Battery Input   Cell Type LFP / 314 Ah Battery System 1P120S Rated Energy 120.58 kWh Rated Voltage 384 V Voltage Range 336 ~ 432 V ​

Item Cell Type LFP 314 Ah Pack Configuration 104.5kWh / 1P104S System Configuration 5.015MWh / 12P416S Rated DC Voltage 1331.2 V DC Voltage Range 1165 ~ 1498 V Max. Charge/Discharge Rate 0.5P Max. Depth of Discharge 100% 25 ±2 ℃ Cycle Life ≥8,000 cycles Fire Suppression System Aerosol system + Water spray system Ingress Rating IP55 Cooling Liquid cooling + Forced air cooling Operating Temperature -25℃~55℃ (Derating after 45℃) Anticorrosion Rating C4 (C5 optional) Humidity 0~95% RH (non-condensing) Altitude 3000m Dimensions (W×D×H) 6,058×2,438×2,896 mm Weight 41.8t Safety/EMC UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 ​

GENERATOR SET SPECIFICATIONS   Frequency: 60Hz   Model: KPX-W1250P   Prime Power (kW/kVA): 1000/1250   Standby Power (kW/kVA): 1063/1329   Fuel cons 100%(L/H): 280     ENGINE：   Powered by:  Weichai   Engine Model: 12M33D1265E201     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-V400P   Prime Power (kW/kVA): 320/400   Standby Power (kW/kVA): 352/440   Fuel cons 100%(L/H): 80.1     ENGINE：   Powered by:  Volvo   Engine Model: TAD1382GE     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 50Hz   Model: KP-K35P   Prime Power (kW/kVA): 28/35   Standby Power (kW/kVA): 31/39   Fuel cons 100%(L/H): 9.07     ENGINE：   Powered by:  Kubota   Engine Model: V3300-T-E2BG     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 60Hz   Model: KPX-C938P   Prime Power (kW/kVA): 750/938   Standby Power (kW/kVA): 830/1038   Fuel cons 100%(L/H): 205     ENGINE：   Powered by:  Cummins   Engine Model: KTA38-G2B     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​

GENERATOR SET SPECIFICATIONS   Frequency: 60Hz   Model: KPX-V450P   Prime Power (kW/kVA): 360/450   Standby Power (kW/kVA): 400/500   Fuel cons 100%(L/H): 92.7     ENGINE：   Powered by:  VOLVO   Engine Model: TAD1344GE     ALTERNATOR：   Exciter type: Brushless, self-excited   Insulation grade: H   Protection grade: IP23​
